SRS Air Bags

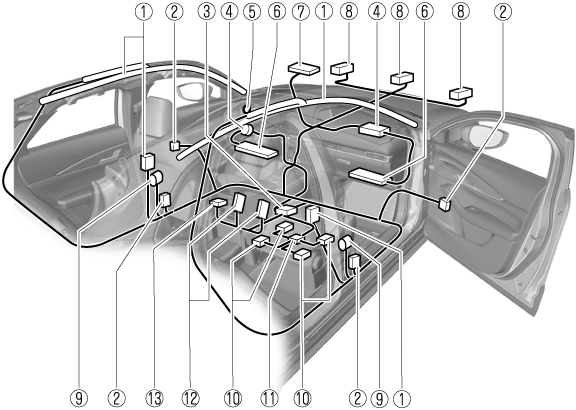

(With Driver and Front Passenger Occupant Classification System)

1. Side and curtain inflators and air bags

2. Side crash sensors

3. Roll-over sensor, crash sensors, and diagnostic module (SAS unit)

4. Driver/Front passenger inflators and air bags

5. Air bag/front seat belt pretensioner system warning indication/warning light (Search)

6. Driver/Front passenger knee inflators and air bags

7. Front passenger air bag deactivation indicator light (Search)

8. Front air bag sensors

9. Seat belt pretensioners (Search)

10. Front passenger seat weight sensors (Search)

11. Front passenger seat weight sensor control module

12. Driver and front passenger seat belt buckle switches (Search)

13. Driver seat slide position sensor (Search)

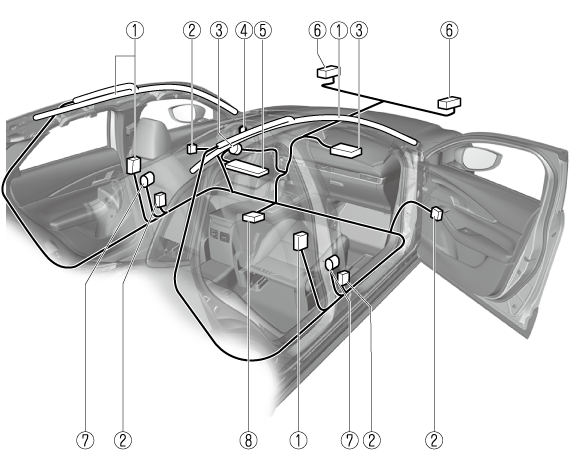

(Without Driver and Front Passenger Occupant Classification System)

1. Side and curtain inflators and air bags

2. Side crash sensors

3. Driver/Front passenger inflators and air bags

4. Air bag/

   front seat belt pretensioner system warning indication

   /warning light (Search)

5. Driver knee inflator and air bag

6. Front air bag sensors

7. Seat belt pretensioners (Search)

8. Crash sensors, and diagnostic module (SAS unit)
